【Scope of application】

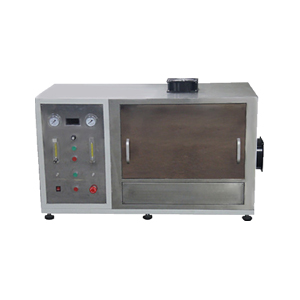

This instrument is suitable for testing the thermal insulation performance of flame-retardant protective clothing fabrics exposed to radiant heat sources and convective heat sources.

【Standards compliant】

National Standard GB/T8965-2009 "Fire-retardant Protection of Protective Clothing Part 1 Flame-retardant Clothing"

【technical parameter】

1. Using microcomputer control

2. Output: test results can be printed in real time

3. Heat source composition: 1 set of radiant heat source and 2 convection heat sources, the radiant heat source is composed of 9 T-150 infrared quartz lamps

4. The convective heat source is composed of two Meike lamps

5. Heat flux range of heat source: ≤100kw/m2

6. Measuring range of copper calorimeter: 0℃～100℃

7. Sample size: 150×150mm

8. Fuel gas medium: propane

9. Power supply: AC220V/50Hz

10. Power: ≤4.5kW
