【Scope of application】

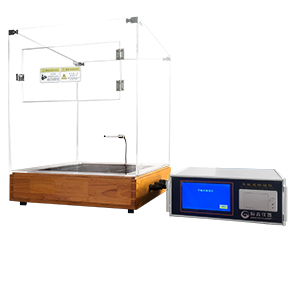

This instrument mainly uses human body temperature (36℃) as the standard to measure the thermal insulation performance of ordinary fabrics, knitted fabrics, raised fabrics, quilted product cushions and various thermal insulation materials. It adopts microcomputer control, large-screen LCD display, automatic data processing, and printout, easy to set up procedures, accurate, fast and convenient testing, it is a necessary universal instrument for correct evaluation of fabric warmth performance indicators.

【Related standards】

GB/T11048, ASTMD1518, JIS-1096, etc.

【technical parameter】

1. The temperature adjustment range of the heating plate: 20～50℃

2. Preheating time setting range: 0～99 minutes

3. Circulating heating cycle setting range: 1～9 times

4. Test times: 1-9 times

5. Small resolution of temperature display value: 0.1℃

6. The technical parameters of the heating plate: test plate 40W, protection plate 80W, bottom plate 120W

7. Test board size: 250×250 mm

8. Test bench size: 510×51×640 mm

9. Overall dimensions of electrical control box: 300×345×150 mm

10. Power supply: AC 220V±5%, 50Hz

11. Net weight: 30kg
